House Plant Assistant

How it Works

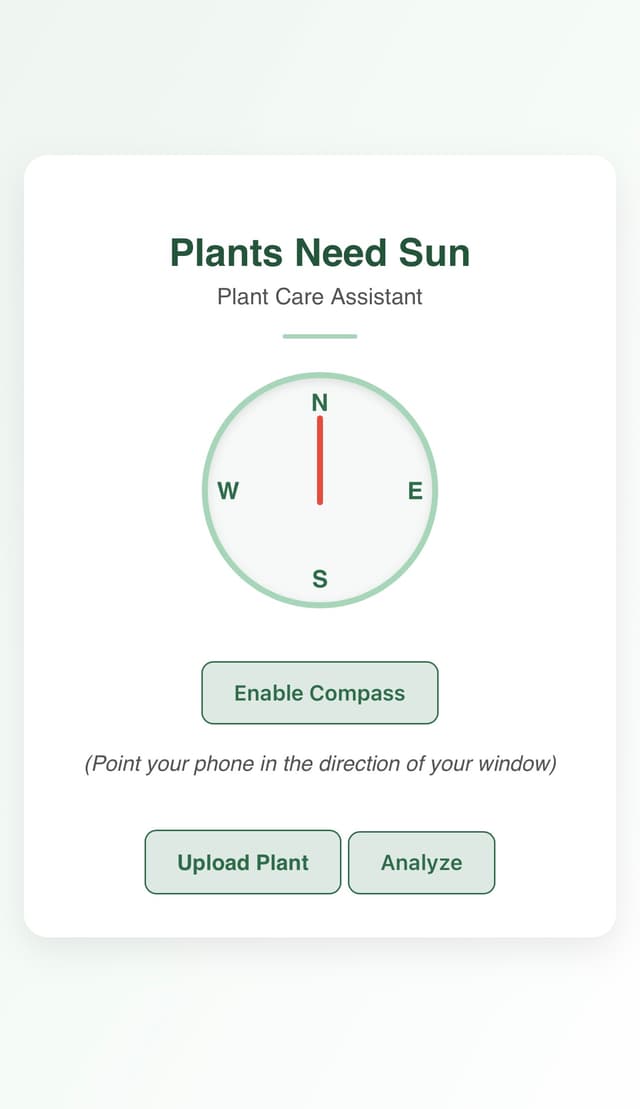

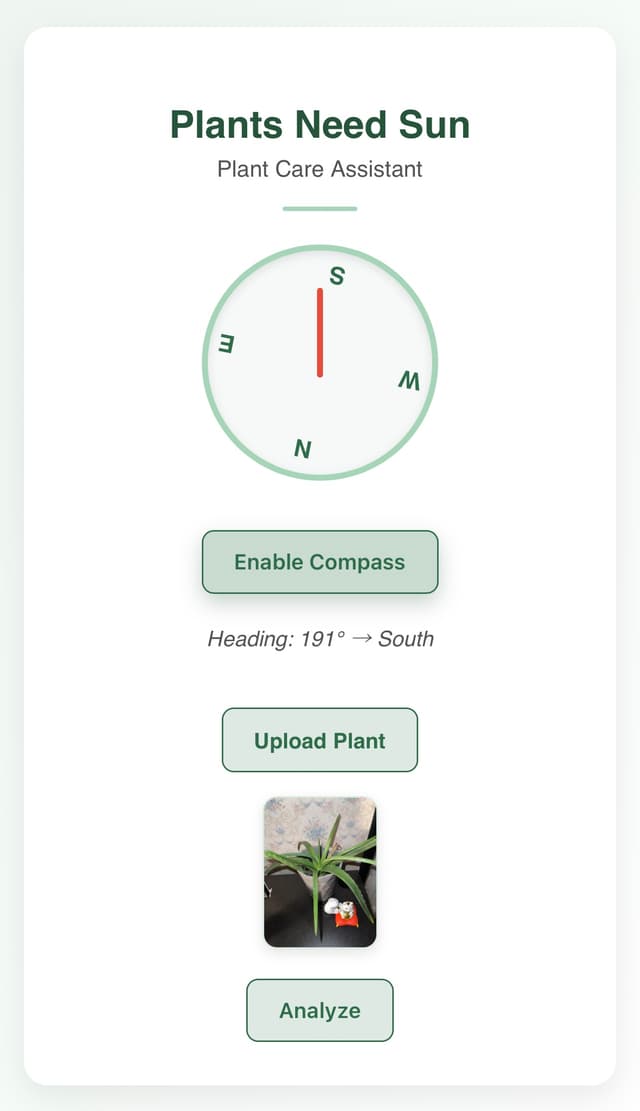

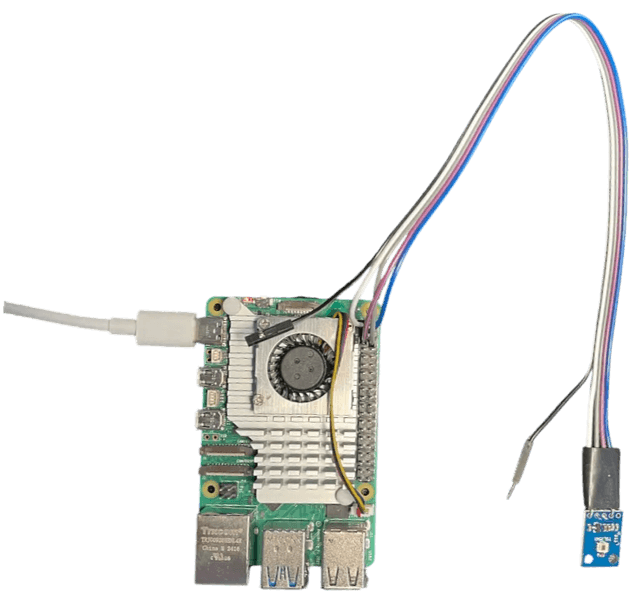

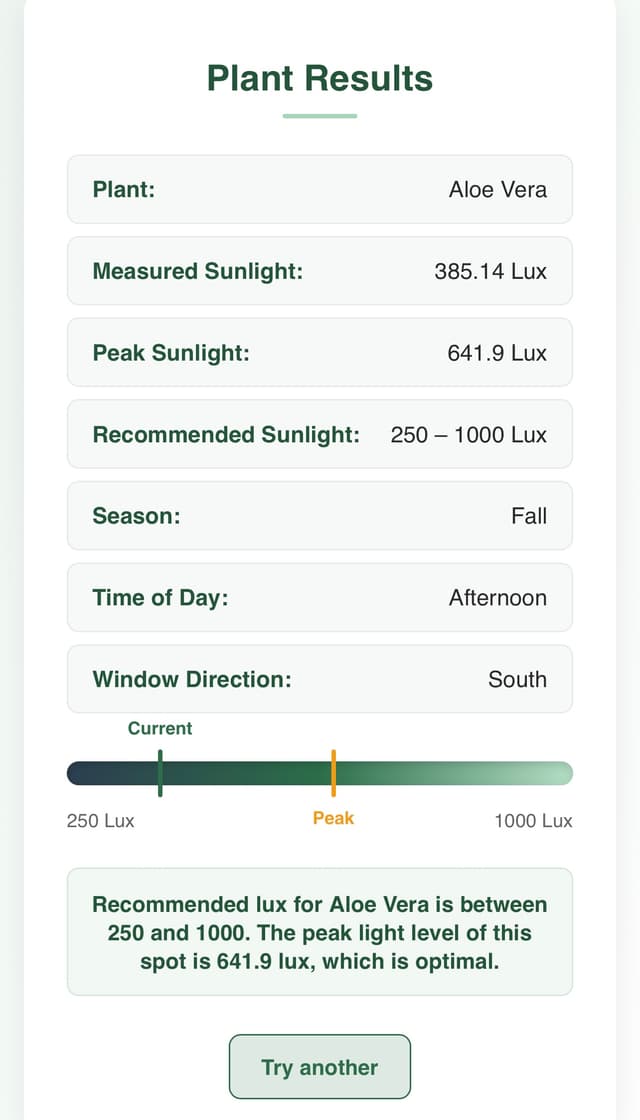

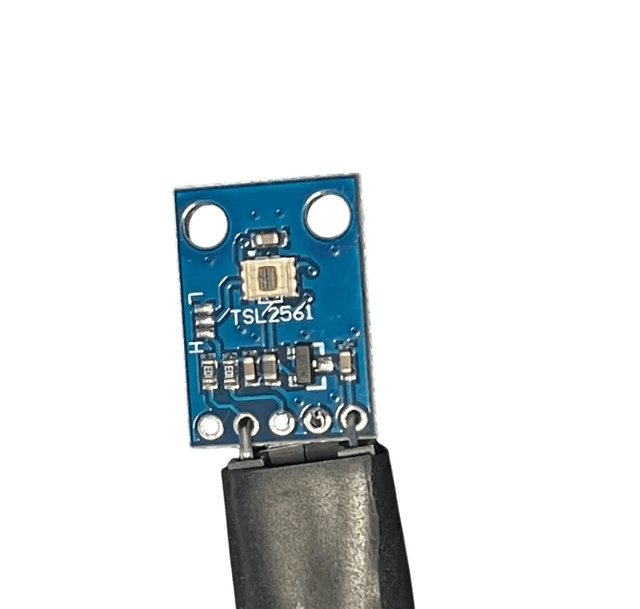

The user places the Raspberry Pi, which is connected to a Lux sensor (TSL2561), right next to their plant in its growing location. The user takes a photo of their plant and uploads it to the assistant, where the CNN classifies the plant species. The user then points their phone towards the window closest to the plant, allowing the compass to record the direction of incoming sunlight. At the same time, the Pi measures the current lux level in that exact spot and records the time of day and current season. Peak sunlight in that spot is calculated, providing an estimate of the maximum light the plant could receive at that location to determine if conditions are ideal for its growth.
